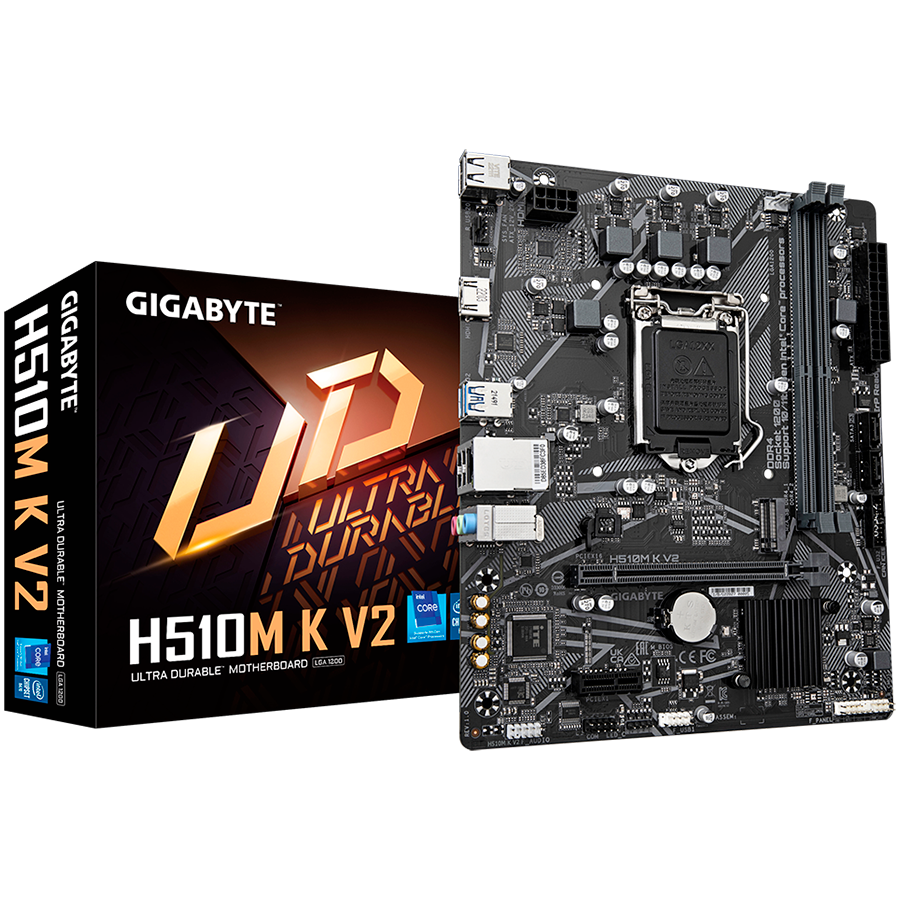

GIGABYTE Mainboard Desktop H510M K V2 (LGA1200, H470 Chipset, 2x DDR4, 1xHDMI, GLAN, 1x PCI Express x16 PCIe 3.0, 1x PCI Express x1 PCIe 3.0, M.2, 2xSATAIII, 4xUSB3.2 Gen1, 6xUSB2.0/1.1) mATX – H510M K V2
76,54€ (576,69 kn)
GIGABYTE Mainboard Desktop H510M K V2 (LGA1200, H470 Chipset, 2x DDR4, 1xHDMI, GLAN, 1x PCI Express x16 PCIe 3.0, 1x PCI Express x1 PCIe 3.0, M.2, 2xSATAIII, 4xUSB3.2 Gen1, 6xUSB2.0/1.1) mATX
Opis
GIGABYTE Mainboard Desktop H510M K V2 (LGA1200, H470 Chipset, 2x DDR4, 1xHDMI, GLAN, 1x PCI Express x16 PCIe 3.0, 1x PCI Express x1 PCIe 3.0, M.2, 2xSATAIII, 4xUSB3.2 Gen1, 6xUSB2.0/1.1) mATX
Dodatne informacije
| Težina | 0,8 kg |
|---|---|
| Dimenzije | 226 × 185 cm |
| Audio Integrated | yes |
| Retail Packaging Net Weight Plastic | 0.04 kg |
| Pack Weight Netto (kg) | 0.8 kg |
| Package Type | Retail |
| Packs in Box | 1 |
| PCI Express 3.0 x1 | 1 |
| PCI Express 3.0 x16 | 1 |
| Pieces in pack | 1 |
| Power Connectors Type | 24+8 pin |
| Provides Error Checking Method | non-ECC |
| Retail Packaging Net Weight Carton | 0.16 kg |
| Software Included | Norton Internet Security (OEM version) |
| Memory Speed | 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2933MHz(PC4-23400) 3000MHz(PC4-24000) 3200MHz(PC4-25600) |
| Supported Operating System | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
| Supports Central Processor Unit | Intel 10th Gen Processors Intel 11th Gen Processors |
| USB 2.0 | 4 (USB 2.0 (type A)) |
| USB 3.2 Gen 1 | 2 (USB 3.2 (type A)) |
| Video Controller Integrated | yes |
| Vrsta memorije | DDR4 SDRAM |
| Warranty Products Returnable | Yes |
| Warranty Term (month) | 36 month(s) |
| Warranty validation Criteria | Serial Number |
| Pack Weight Brutto (kg) | 1 kg |
| Memory Slot Total Quantity | 2 |
| Audio Interface | 3 (3.5-mm minijack) |
| Device Location | Integrated |
| Audio Output Mode | 7.1 Channel Surround |
| BIOS Features | Gigabyte Q-Flash Gigabyte Xpress Install WfM 2.0 Support PnP 1.0a Support UEFI SMBIOS 2.7 Support 128 Mb Flash ROM ACPI 5.0 Support |
| BIOS Type | AMI |
| Box Weight Brutto (kg) | 1 kg |
| Chipset | Intel H470 |
| Compliant Audio Standards | High Definition Audio |
| CPU Maximum Quantity Supports | 1 |
| CPU podnožje | Socket 1200 |
| Data Link Protocol Supports | Gigabit Ethernet/Fast Ethernet/Ethernet |
| EAN Code | 4719331855253 |
| Memory Form Factor | DIMM 288-pin |
| Form Factor | Micro ATX |
| Hardware Monitoring | CPU Temperature CPU Voltage System Temperature System Voltage |
| HDMI | 1 (HDMI (Type A)) |
| Height (mm) | 185 mm |
| Integrated | Storage Controller:Supports: Level 0, Level 1, Level 10, Level 5PCIe 3.0 x4/SATA (1 x M.2 (Key M))Storage Controller:Supports: Level 0, Level 1, Level 10, Level 5SATA III-600 (4) |
| LAN | 1 (RJ-45) |
| LAN Integrated | yes |
| Mainboard Features | Fan Speed Control |
| Maximum Installable System Memory Storage Capacity | 64 GB |
| Memory Features | Two DDR Channels Unbuffered Dual Rank Single Rank XMP |
| Width (mm) | 226 mm |
