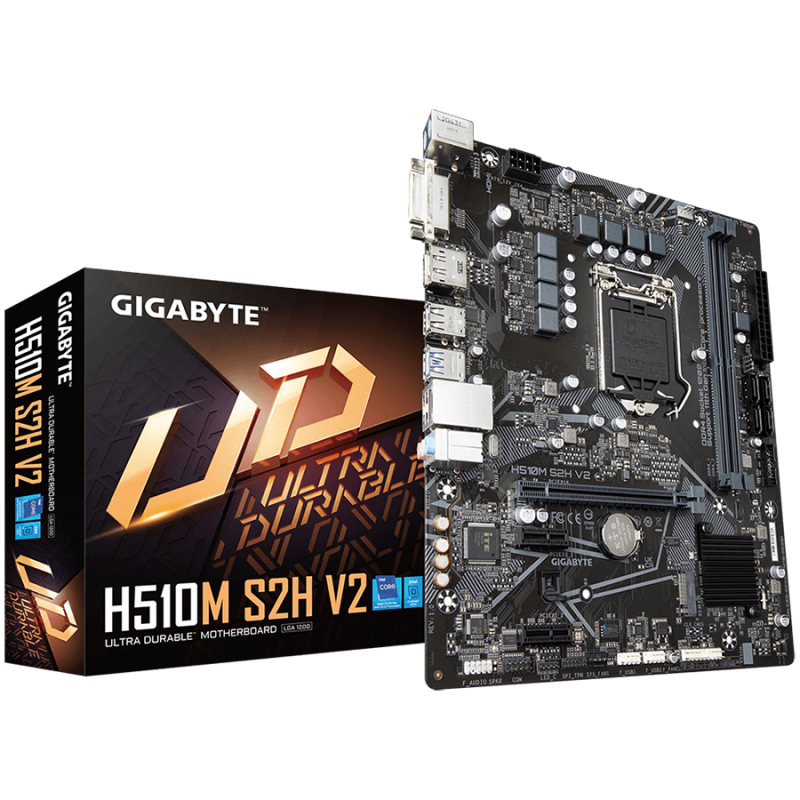

GIGABYTE Mainboard Desktop H510M S2H V2 (Socket 1200, 2x DDR4 64GB, 1x PCI-E x16x16, 2x PCI-E x1, 4x SATA, 1x M.2, 2x USB 3.2 Gen1, 4x USB 2.0, 1x DP, 1x HDMI, GbE LAN, mATX, Retail) – H510M S2H V2

87,35€ (658,14 kn)

GIGABYTE Mainboard Desktop H510M S2H V2 (Socket 1200, 2x DDR4 64GB, 1x PCI-E x16x16, 2x PCI-E x1, 4x SATA, 1x M.2, 2x USB 3.2 Gen1, 4x USB 2.0, 1x DP, 1x HDMI, GbE LAN, mATX, Retail)

TEČAJ: 1 EUR = 7,53450 HRK Kategorija:

Opis

GIGABYTE Mainboard Desktop H510M S2H V2 (Socket 1200, 2x DDR4 64GB, 1x PCI-E x16x16, 2x PCI-E x1, 4x SATA, 1x M.2, 2x USB 3.2 Gen1, 4x USB 2.0, 1x DP, 1x HDMI, GbE LAN, mATX, Retail)

Dodatne informacije

Težina 0,01 kg
Dimenzije 244 × 210 cm
Architecture Features

14nm CPUs support
PS/2

2
Memory Speed

2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2933MHz(PC4-23400) 3000MHz(PC4-24000) 3200MHz(PC4-25600)
Pack Weight Brutto (kg)

1 kg
Pack Weight Netto (kg)

0.01 kg
Package Type

Retail
Packs in Box

10
PCI Express 3.0 x1

2
PCI Express 4.0 x16

1
Pieces in pack

1
Provides Error Checking Method

Non-ECC
Retail Packaging Net Weight Carton

0.01 kg
Memory Form Factor

DIMM 288-pin
Retail Packaging Net Weight Plastic

0.01 kg
Supported Operating System

Windows 10
Supports Central Processor Unit

Intel Celeron Intel Pentium Intel 10th Gen Processors Intel 11th Gen Processors
USB 2.0

4 (USB 2.0 (type A))
USB 3.2 Gen 1

2 (USB 3.2 (type A))
Vrsta memorije

DDR4 SDRAM
Warranty Products Returnable

Yes
Warranty Term (month)

36 month(s)
Warranty validation Criteria

Serial Number
Memory Slot Total Quantity

2
Memory Features

Two DDR Channels Unbuffered XMP
Audio Integrated

yes
Data Link Protocol Supports

Gigabit Ethernet/Fast Ethernet/Ethernet
Audio Interface

3 (3.5-mm minijack)
Audio Output Mode

7.1 Channel Surround
BIOS Features

WfM 2.0 Support PnP 1.0a Support UEFI SMBIOS 2.7 Support DMI 2.7 Support ACPI 5.0 Support 256 Mb Flash ROM
BIOS Type

AMI
Box Weight Brutto (kg)

1 kg
Chipset

Intel H510
Compliant Audio Standards

High Definition Audio
CPU Maximum Quantity Supports

1
CPU podnožje

Socket 1200
Device Location

Integrated
Maximum Installable System Memory Storage Capacity

64 GB
DisplayPort

1
DVI

1 (DVI-D)
Form Factor

Micro ATX
HDMI

1 (HDMI (Type A))
Height (mm)

210 mm
Included Accessories

User Guide Screws Driver CD
Integrated

Storage Controller:SATA III-600 (4)Storage Controller:PCIe 3.0 x4/SATA (1 x M.2 (Key M))
LAN

1 (RJ-45)
LAN Chipset

Realtek RTL8118
LAN Integrated

yes
Width (mm)

244 mm
