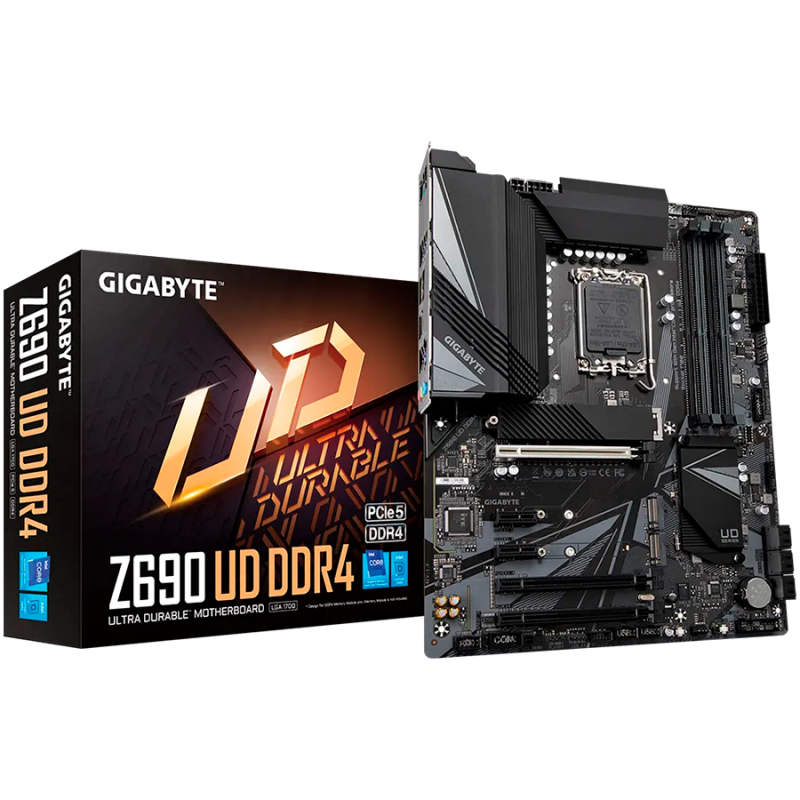

GIGABYTE Mainboard Desktop Z690 UD DDR4 (S1700, 4xDDR4 up to 128GB, 1xPCIEX16x16 5.0, 1xPCIEX16x4 3.0, 1xPCIEX16x1 3.0, 2xPCIEX1, 6xSATA, 3xM.2, USB3.2, USB2.0, USB Type-C, 1xHDMI, 1xDP, 2.5GbE LAN, ATX, Retail) – Z690 UD DDR4

223,66€ (1.685,17 kn)

GIGABYTE Mainboard Desktop Z690 UD DDR4 (S1700, 4xDDR4 up to 128GB, 1xPCIEX16x16 5.0, 1xPCIEX16x4 3.0, 1xPCIEX16x1 3.0, 2xPCIEX1, 6xSATA, 3xM.2, USB3.2, USB2.0, USB Type-C, 1xHDMI, 1xDP, 2.5GbE LAN, ATX, Retail)

TEČAJ: 1 EUR = 7,53450 HRK Kategorija:

Opis

GIGABYTE Mainboard Desktop Z690 UD DDR4 (S1700, 4xDDR4 up to 128GB, 1xPCIEX16x16 5.0, 1xPCIEX16x4 3.0, 1xPCIEX16x1 3.0, 2xPCIEX1, 6xSATA, 3xM.2, USB3.2, USB2.0, USB Type-C, 1xHDMI, 1xDP, 2.5GbE LAN, ATX, Retail)

Dodatne informacije

Težina 1 kg
Dimenzije 305 × 244 cm
Audio Integrated

yes
Retail Packaging Net Weight Plastic

0.2 kg
Package Type

Retail
Packs in Box

10
PCI Express 3.0 x1

2
PCI Express 3.0 x16

2
PCI Express 5.0 x16

1
Pieces in pack

1
Power Connectors Type

24+8+4 pin
Provides Error Checking Method

non-ECC
PS/2

1
Retail Packaging Net Weight Carton

0.2 kg
Software Included

Norton Internet Security
Pack Weight Brutto (kg)

1.5 kg
Supported Operating System

Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit
Supports Central Processor Unit

Intel 12th Gen Processors
USB 2.0

4 (USB 2.0 (type A))
USB 3.2 Gen 1

4 (USB 3.2 (type A))
USB 3.2 Gen 2

1 (USB 3.2 (type A))
USB 3.2 Gen 2 x2

1 (USB 3.2 (type C))
Vrsta memorije

DDR5 SDRAM
Warranty Products Returnable

Yes
Warranty Term (month)

36 month(s)
Warranty validation Criteria

Serial Number
Pack Weight Netto (kg)

1 kg
Memory Speed

2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2800MHz(PC4-22400) 2933MHz(PC4-23400) 3000MHz(PC4-24000) 3200MHz(PC4-25600)
Audio Interface

3 (3.5-mm minijack)
DisplayPort

1
Audio Output Mode

7.1 Channel Surround
BIOS Features

Gigabyte Q-Flash Gigabyte Xpress Install WfM 2.0 Support PnP 1.0a Support UEFI SMBIOS 2.7 Support DMI 2.7 Support ACPI 5.0 Support 256 Mb Flash ROM
BIOS Type

AMI
Box Weight Brutto (kg)

15 kg
Chipset

Intel Z690
Compliant Audio Standards

High Definition Audio
CPU Maximum Quantity Supports

1
CPU podnožje

Socket 1700
Data Link Protocol Supports

2.5 Gbps
Device Location

Integrated
Form Factor

ATX
Memory Slot Total Quantity

4
Hardware Monitoring

Chassis Fan Tachometer System Temperature System Voltage
HDMI

1 (HDMI (Type A))
Height (mm)

244 mm
Integrated

Storage Controller:Supports: Level 0, Level 1, Level 10, Level 5SATA III-600 (6)Storage Controller:PCI Express 4.0 x4 (3 x M.2 (Key M))
LAN

1 (RJ-45)
LAN Integrated

yes
Mainboard Features

AMD 2-Way CrossFire TechnologyIntel Optane Memory ReadyAMD Quad CrossFireRGB Fusion
Maximum Installable System Memory Storage Capacity

128 GB
Memory Features

Two DDR Channels Unbuffered Dual Rank Single Rank XMP
Memory Form Factor

DIMM 288-pin
Width (mm)

305 mm
