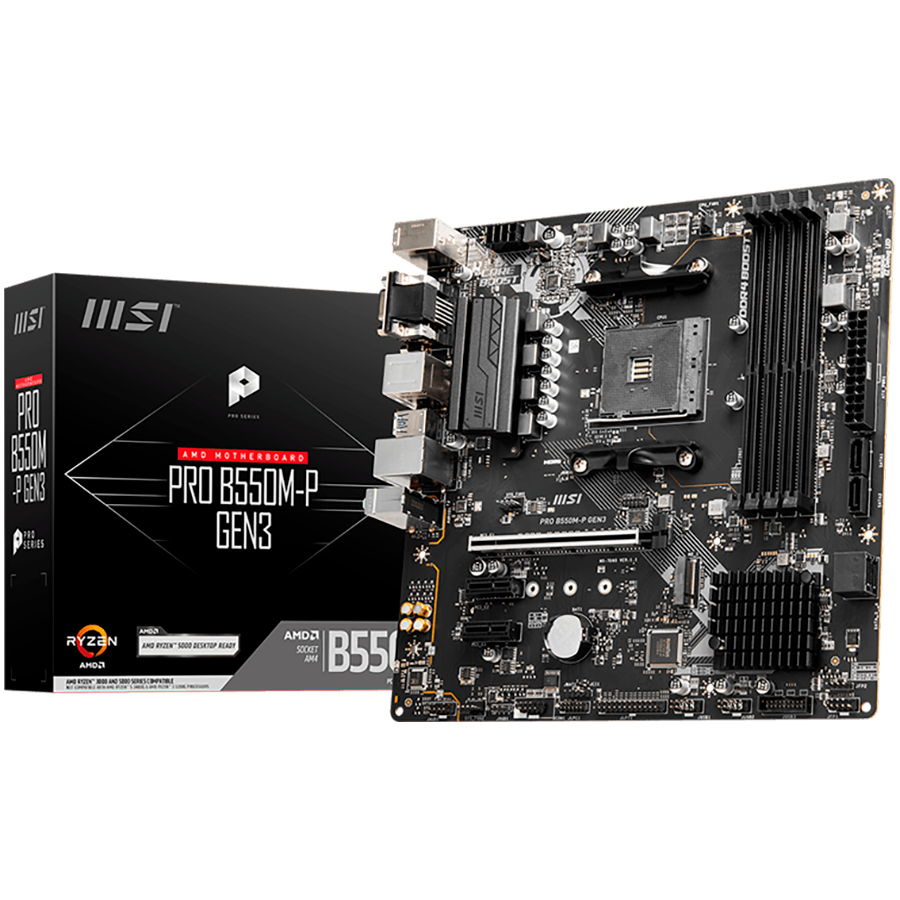

MSI Main Board Desktop PRO B550M-P GEN3 (AMD B550 Chipset) AM4, 4xDIMM, 1xPCI-Ex16, 2xPCI-Ex1, 4 x USB3.2, 4 x USB2.0, 4x SATAIII, M.2, DVI-D, HDMI, VGA, mATX – PRO_B550M-P_GEN3
97,65€ (735,74 kn)
MSI Main Board Desktop PRO B550M-P GEN3 (AMD B550 Chipset) AM4, 4xDIMM, 1xPCI-Ex16, 2xPCI-Ex1, 4 x USB3.2, 4 x USB2.0, 4x SATAIII, M.2, DVI-D, HDMI, VGA, mATX
Nema na zalihi
Opis
MSI Main Board Desktop PRO B550M-P GEN3 (AMD B550 Chipset) AM4, 4xDIMM, 1xPCI-Ex16, 2xPCI-Ex1, 4 x USB3.2, 4 x USB2.0, 4x SATAIII, M.2, DVI-D, HDMI, VGA, mATX
Dodatne informacije
| Težina | 1 kg |
|---|---|
| Dimenzije | 244 × 244 cm |
| Audio Integrated | yes |
| Provides Error Checking Method | non-ECC |
| Memory Slot Total Quantity | 4 |
| Memory Speed | 1866MHz(PC4-14900) 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2667MHz(PC4-21300) 2800MHz(PC4-22400) 2933MHz(PC4-23400) 3000MHz(PC4-24000) 3200MHz(PC4-25600) |
| Pack Weight Brutto (kg) | 1 kg |
| Pack Weight Netto (kg) | 1 kg |
| Package Type | Box |
| Packs in Box | 1 |
| PCI Express 3.0 x1 | 2 |
| PCI Express 3.0 x16 | 1 |
| Pieces in pack | 1 |
| Power Connectors Type | 24+8 pin |
| PS/2 | 1 |
| Memory Features | Two DDR Channels Unbuffered |
| Retail Packaging Net Weight Carton | 0.8 kg |
| Retail Packaging Net Weight Plastic | 1 kg |
| Supports Central Processor Unit | AMD Ryzen Series 3rd Generation AMD Ryzen Series 4th Generation AMD Ryzen Series 5th Generation |
| USB 2.0 | 4 (USB 2.0 (type A)) |
| USB 3.2 Gen 1 | 4 (USB 3.2 (type A)) |
| VGA | 1 (15-pin D-sub) |
| Vrsta memorije | DDR4 SDRAM |
| Warranty Products Returnable | Yes |
| Warranty Term (month) | 36 month(s) |
| Warranty validation Criteria | Serial Number |
| Memory Form Factor | DIMM 288-pin |
| Maximum Installable System Memory Storage Capacity | 128 GB |
| Audio Interface | 3 (3.5-mm minijack) |
| Device Location | Integrated |
| Audio Output Mode | 7.1 Channel Surround |
| BIOS Features | UEFI SMBIOS 2.8 Support ACPI 6.1 Support 256 Mb Flash ROM |
| BIOS Type | AMI |
| Box Weight Brutto (kg) | 1 kg |
| Cable Included | 2 x SATA cables |
| Chipset | AMD B550 |
| Compliant Audio Standards | High Definition Audio |
| CPU Maximum Quantity Supports | 1 |
| CPU podnožje | Socket AM4 |
| Data Link Protocol Supports | Gigabit Ethernet/Fast Ethernet/Ethernet |
| DVI | 1 (DVI-D) |
| Mainboard Features | Fan Speed Control |
| EAN Code | 4719072962234 |
| Form Factor | Micro ATX |
| Hardware Monitoring | CPU Fan Tachometer CPU Temperature System Temperature Chipset Temperature |
| HDMI | 1 (HDMI (Type A)) |
| Height (mm) | 244 mm |
| Included Accessories | I/O Shield Quick Start Guide Screws |
| Integrated | Storage Controller:Supports: Level 0, Level 1, Level 10SATA III-600 (4)Storage Controller:PCIe 3.0 x4/SATA (1 x M.2 (Key M)) |
| LAN | 1 (RJ-45) |
| LAN Chipset | Realtek RTL8111H |
| LAN Integrated | yes |
| Width (mm) | 244 mm |
