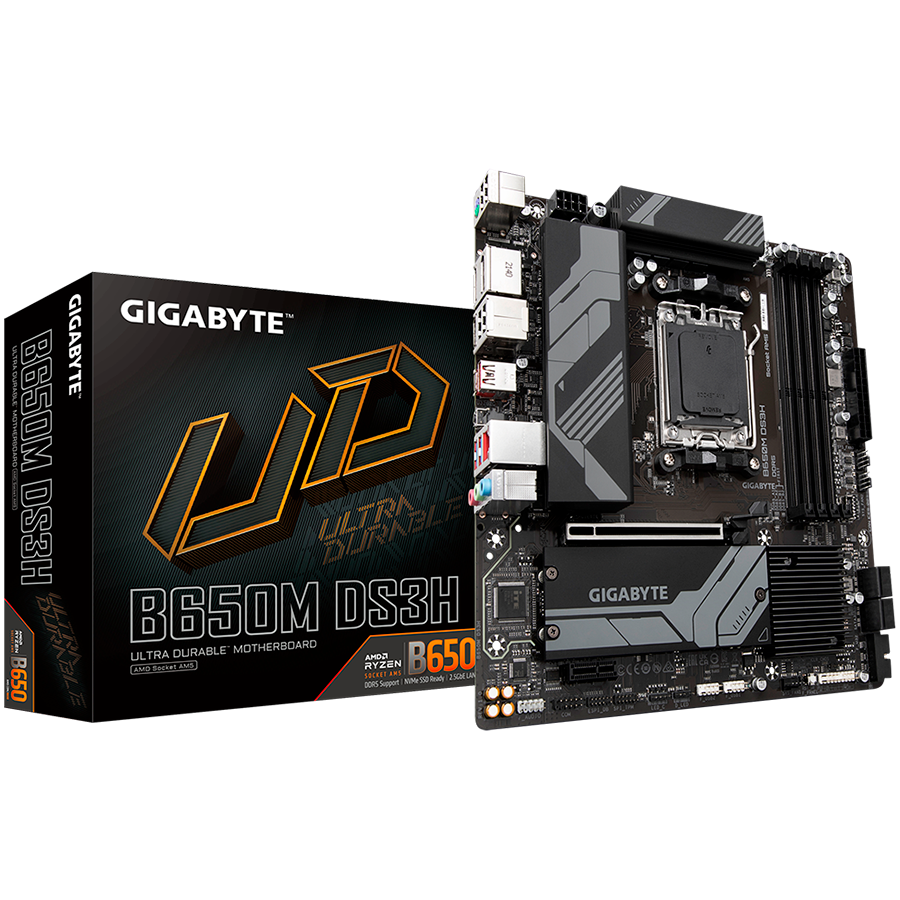

GIGABYTE Mainboard Desktop B650M DS3H (AM5, 4xDDR5 max 128GB, 1x PCI-E 4.0 x16x16, 1x PCI-E 3.0 x16x1, 4x SATA, 2x M.2 PCIe 4.0, 1xUSB 3.2 Gen2, 4x USB 2.0, 1xUSB 3.2 Gen2 Type-C, 1xHDMI, 1xDP, 2.5GbE LAN, mATX, Retail) – B650M DS3H
170,38€
GIGABYTE Mainboard Desktop B650M DS3H (AM5, 4xDDR5 max 128GB, 1x PCI-E 4.0 x16x16, 1x PCI-E 3.0 x16x1, 4x SATA, 2x M.2 PCIe 4.0, 1xUSB 3.2 Gen2, 4x USB 2.0, 1xUSB 3.2 Gen2 Type-C, 1xHDMI, 1xDP, 2.5GbE LAN, mATX, Retail)
Opis
GIGABYTE Mainboard Desktop B650M DS3H (AM5, 4xDDR5 max 128GB, 1x PCI-E 4.0 x16x16, 1x PCI-E 3.0 x16x1, 4x SATA, 2x M.2 PCIe 4.0, 1xUSB 3.2 Gen2, 4x USB 2.0, 1xUSB 3.2 Gen2 Type-C, 1xHDMI, 1xDP, 2.5GbE LAN, mATX, Retail)
Dodatne informacije
| Težina | 1,5 kg |
|---|---|
| Dimenzije | 244 × 244 cm |
| Audio Integrated | yes |
| Retail Packaging Net Weight Carton | 0.3 kg |
| Pack Weight Brutto (kg) | 1.462 kg |
| Pack Weight Netto (kg) | 1.5 kg |
| Package Type | Retail |
| Packs in Box | 8 |
| PCI Express 3.0 x1 | 1 |
| PCI Express 4.0 x16 | 1 |
| Pieces in pack | 1 |
| Provides Error Checking Method | non-ECC |
| PS/2 | 1 |
| Retail Packaging Net Weight Plastic | 0.2 kg |
| Memory Slot Total Quantity | 4 |
| Supported Operating System | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
| Supports Central Processor Unit | AMD Ryzen 7000 Series |
| USB 2.0 | 4 (USB 2.0 (type A)) |
| USB 3.2 Gen 1 | 2 (USB 3.2 (type A)) |
| USB 3.2 Gen 2 | 1 (USB 3.2 (type A)); 1 (USB 3.2 (type C)) |
| Vrsta memorije | DDR5 SDRAM |
| Warranty Products Returnable | Yes |
| Warranty Term (month) | 36 month(s) |
| Warranty validation Criteria | Serial Number |
| Memory Speed | 4800MHz(PC5-38400) 5200MHz(PC5-41600) |
| Memory Form Factor | DIMM 288-pin |
| Audio Interface | 3 (3.5-mm minijack) |
| Device Location | Integrated |
| Audio Output Mode | 7.1 Channel Surround |
| BIOS Features | Gigabyte Q-Flash WfM 2.0 Support PnP 1.0a Support UEFI SMBIOS 2.7 Support DMI 2.7 Support ACPI 5.0 Support 256 Mb Flash ROM |
| BIOS Type | AMI |
| Cable Included | SATA Cable |
| Chipset | AMD B650 |
| Compliant Audio Standards | High Definition Audio |
| CPU Maximum Quantity Supports | 1 |
| CPU podnožje | Socket AM5 |
| Data Link Protocol Supports | 2.5 Gbps |
| DisplayPort | 2 |
| Memory Features | Two DDR Channels Unbuffered XMP AMD EXPO |
| EAN Code | 4719331849825 |
| Form Factor | Micro ATX |
| Hardware Monitoring | CPU Fan Tachometer CPU Temperature CPU Voltage |
| HDMI | 1 (HDMI (Type A)) |
| Height (mm) | 244 mm |
| Included Accessories | Quick Start Guide Screws |
| Integrated | Storage Controller:Supports: Level 0, Level 1PCI Express 4.0 x4 (2 x M.2)Storage Controller:Supports: Level 0, Level 1, Level 10SATA III-600 (4) |
| LAN | 1 (RJ-45) |
| LAN Integrated | yes |
| Maximum Installable System Memory Storage Capacity | 128 GB |
| Width (mm) | 244 mm |
