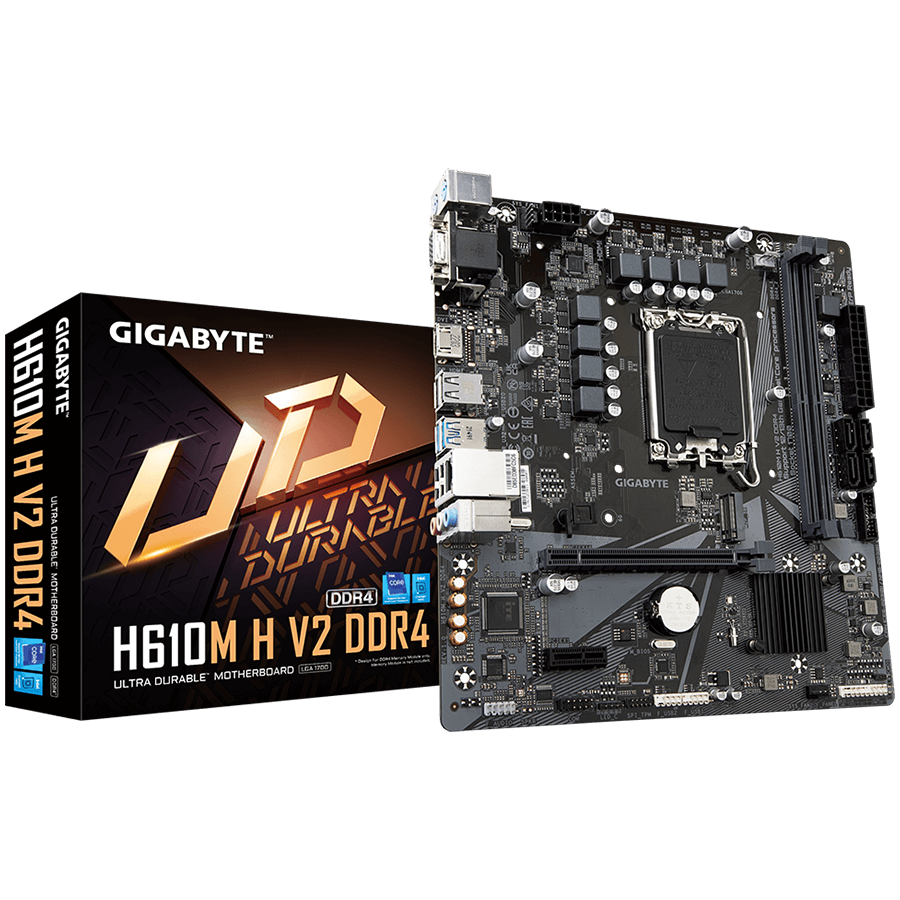

GIGABYTE Mainboard Desktop H610M H V2 DDR4 (LGA1700, 2xDDR4, 1xD-Sub, 1xHDMI, GLAN, 1xPCI Express x16 4.0, 1xPCI Express x16 3.0, 1xM.2, 4xSATAIII, 4xUSB3.2 Gen1, 8xUSB2.0/1.1) mATX – H610M H V2 DDR4

93,70€ (705,98 kn)

GIGABYTE Mainboard Desktop H610M H V2 DDR4 (LGA1700, 2xDDR4, 1xD-Sub, 1xHDMI, GLAN, 1xPCI Express x16 4.0, 1xPCI Express x16 3.0, 1xM.2, 4xSATAIII, 4xUSB3.2 Gen1, 8xUSB2.0/1.1) mATX

TEČAJ: 1 EUR = 7,53450 HRK Kategorija:

Opis

GIGABYTE Mainboard Desktop H610M H V2 DDR4 (LGA1700, 2xDDR4, 1xD-Sub, 1xHDMI, GLAN, 1xPCI Express x16 4.0, 1xPCI Express x16 3.0, 1xM.2, 4xSATAIII, 4xUSB3.2 Gen1, 8xUSB2.0/1.1) mATX

Dodatne informacije

Težina 0,594 kg
Dimenzije 230 × 215 cm
Audio Integrated

yes
Supported Operating System

Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit
Package Type

Retail
Packs in Box

10
PCI Express 3.0 x1

1
PCI Express 4.0 x16

1
Pieces in pack

1
Provides Error Checking Method

non-ECC
PS/2

2
Retail Packaging Net Weight Carton

0.18 kg
Retail Packaging Net Weight Plastic

0.02 kg
Software Included

Norton Internet Security (OEM version)
Supports Central Processor Unit

Intel 12th Gen Processors Intel 13th Gen Processors
Pack Weight Brutto (kg)

0.79 kg
USB 2.0

4 (USB 2.0 (type A))
USB 3.2 Gen 1

2 (USB 3.2 (type A))
VGA

1 (15-pin D-sub)
Video Chipset

Intel HD Graphics
Video Controller Integrated

yes
Vrsta memorije

DDR4 SDRAM
Wake up/Sleep

Wake on LAN
Warranty Products Returnable

Yes
Warranty Term (month)

36 month(s)
Warranty validation Criteria

Serial Number
Pack Weight Netto (kg)

0.594 kg
Memory Speed

2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2800MHz(PC4-22400) 2933MHz(PC4-23400) 3000MHz(PC4-24000) 3200MHz(PC4-25600)
Audio Interface

3 (3.5-mm minijack)
EAN Code

4719331851743
Audio Output Mode

7.1 Channel Surround
BIOS Features

Gigabyte @BIOS Gigabyte Q-Flash Gigabyte Xpress Install WfM 2.0 Support Gigabyte EasyTune PnP 1.0a Support UEFI SMBIOS 2.7 Support PXE boot 128 Mb Flash ROM DMI 2.7 Support ACPI 5.0 Support
BIOS Type

AMI
Box Weight Brutto (kg)

7.94 kg
Chipset

Intel H610
Compliant Audio Standards

High Definition Audio
CPU Maximum Quantity Supports

1
CPU podnožje

Socket 1700
Data Link Protocol Supports

Gigabit Ethernet/Fast Ethernet/Ethernet
Device Location

Integrated
Form Factor

Micro ATX
Memory Slot Total Quantity

2
HDMI

1 (HDMI (Type A))
Height (mm)

215 mm
Included Accessories

User Guide
Integrated

Storage Controller:SATA III-600 (4)Storage Controller:PCI Express 3.0 x4 (1 x M.2 (Key M))
LAN

1 (RJ-45)
LAN Integrated

yes
Mainboard Features

Fan Speed Control
Maximum Installable System Memory Storage Capacity

64 GB
Memory Features

Two DDR Channels Unbuffered Dual Rank Single Rank XMP
Memory Form Factor

DIMM 288-pin
Width (mm)

230 mm
