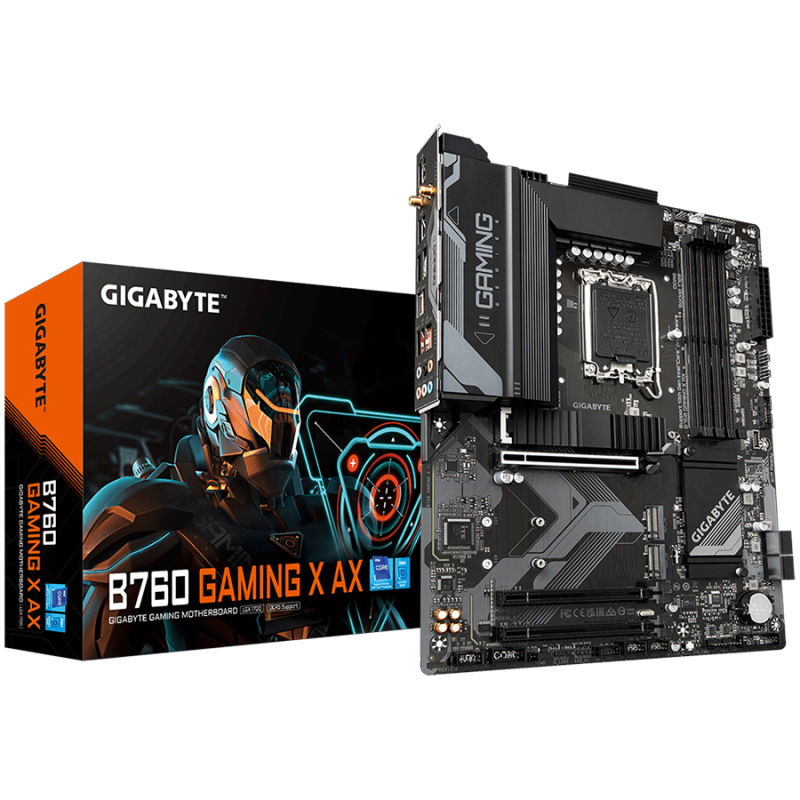

GIGABYTE MB B760 LGA1700 4 x DDR5 3 x M.2 4 x SATA 1 x DisplayPort 1 x HDMI port ATX – B760 GAMING X AX

222,87€ (1.679,21 kn)

GIGABYTE MB B760 LGA1700 4 x DDR5 3 x M.2 4 x SATA 1 x DisplayPort 1 x HDMI port ATX

TEČAJ: 1 EUR = 7,53450 HRK Kategorija:

Opis

GIGABYTE MB B760 LGA1700 4 x DDR5 3 x M.2 4 x SATA 1 x DisplayPort 1 x HDMI port ATX

Dodatne informacije

Težina 1,65 kg
Dimenzije 305 × 244 cm
Antenna

2
Software Included

Norton Internet Security (OEM version)
Package Type

Retail
Packs in Box

1
PCI Express 3.0 x16

2
PCI Express 4.0 x16

1
Pieces in pack

1
Plug-in-card

Wi-Fi Controller:AMD Wi-Fi 6E RZ608
Power Connectors Type

24+8 pin
Provides Error Checking Method

non-ECC
Retail Packaging Net Weight Carton

0.01 kg
Retail Packaging Net Weight Plastic

0.01 kg
Supported Operating System

Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit
Pack Weight Brutto (kg)

1.65 kg
Supports Central Processor Unit

Intel 12th Gen Processors Intel 13th Gen Processors
USB 2.0

5 (USB 2.0 (type A))
USB 3.2 Gen 1

1 (USB 3.2 (type C)); 1 (USB 3.2 (type A))
USB 3.2 Gen 2

1 (USB 3.2 (type A))
Video Chipset

Intel HD Graphics
Video Controller Integrated

yes
Vrsta memorije

DDR5 SDRAM
Warranty Products Returnable

Yes
Warranty Term (month)

12 month(s)
Warranty validation Criteria

Serial Number
Wi-Fi

IEEE 802.11ax Wi-Fi 6
Pack Weight Netto (kg)

1.65 kg
Memory Speed

4800MHz(PC5-38400)
Audio Integrated

yes
Device Location

Integrated
Audio Interface

6 (3.5-mm minijack)
Audio Output Mode

7.1 Channel Surround
BIOS Features

Gigabyte Q-Flash WfM 2.0 Support PnP 1.0a Support UEFI SMBIOS 2.7 Support DMI 2.7 Support ACPI 5.0 Support 256 Mb Flash ROM
BIOS Type

AMI
Bluetooth

Bluetooth 5.2
Box Weight Brutto (kg)

1.65 kg
Chipset

Intel B760
Compliant Audio Standards

High Definition Audio
CPU Maximum Quantity Supports

1
CPU podnožje

Socket 1700
Data Link Protocol Supports

1 Gbps 2.5 Gbps
DisplayPort

1
Memory Slot Total Quantity

4
Form Factor

ATX
Hardware Monitoring

CPU Temperature CPU Voltage System Temperature System Voltage
HDMI

1 (HDMI (Type A))
Height (mm)

244 mm
Integrated

Storage Controller:PCI Express 4.0 x4 (3 x M.2 (Key M))Storage Controller:Supports: Level 0, Level 1, Level 10, Level 5SATA III-600 (4)
LAN

1 (RJ-45)
LAN Integrated

yes
Mainboard Features

Fan Speed Control
Maximum Installable System Memory Storage Capacity

192 GB
Memory Features

Unbuffered Dual Rank Single Rank XMP
Memory Form Factor

DIMM 288-pin
Width (mm)

305 mm
