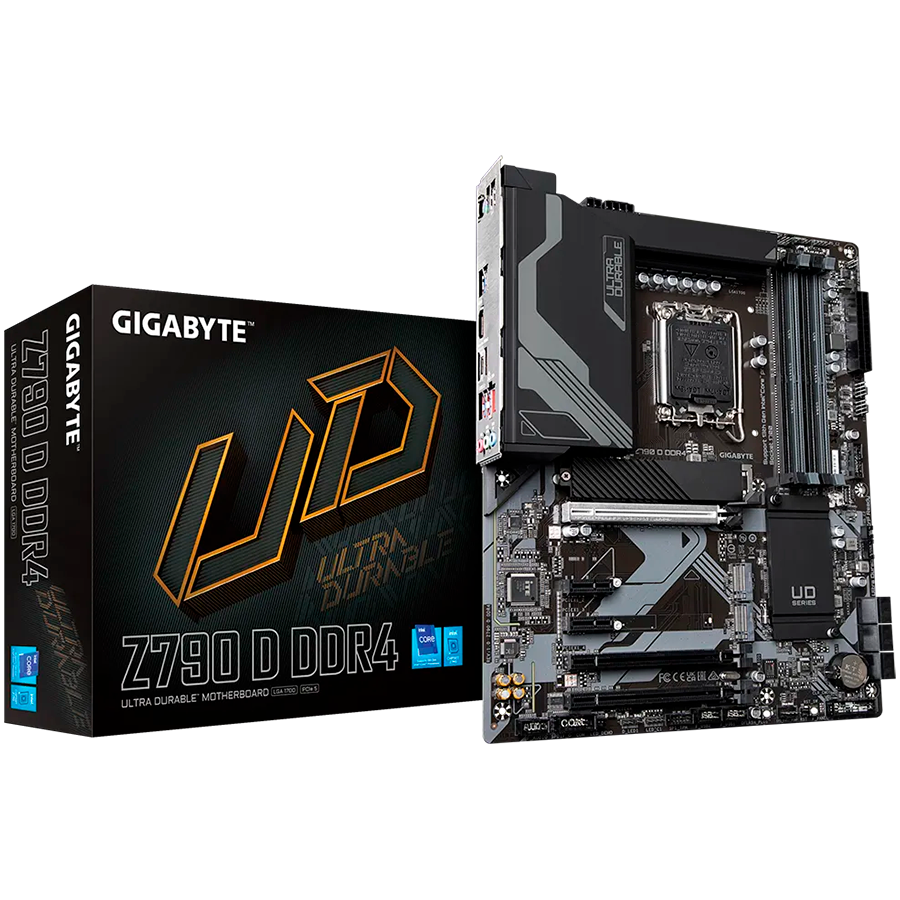

GIGABYTE MB Z790 LGA1700 4 x DDR4 3 x M.2 6 x SATA 1 x HDMI 2.0 ATX – Z790 D DDR4
232,28€ (1.750,11 kn)
GIGABYTE MB Z790 LGA1700 4 x DDR4 3 x M.2 6 x SATA 1 x HDMI 2.0 ATX
Opis
GIGABYTE MB Z790 LGA1700 4 x DDR4 3 x M.2 6 x SATA 1 x HDMI 2.0 ATX
Dodatne informacije
| Težina | 1,75 kg |
|---|---|
| Dimenzije | 305 × 244 cm |
| Audio Integrated | yes |
| Supported Operating System | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
| Packs in Box | 1 |
| PCI Express 3.0 x1 | 2 |
| PCI Express 3.0 x16 | 1 |
| PCI Express 4.0 x16 | 1 |
| PCI Express 5.0 x16 | 1 |
| Pieces in pack | 1 |
| Provides Error Checking Method | non-ECC |
| Retail Packaging Net Weight Carton | 0.01 kg |
| Retail Packaging Net Weight Plastic | 0.01 kg |
| Software Included | Norton Internet Security (OEM version) |
| Supports Central Processor Unit | Intel 12th Gen Processors Intel 13th Gen Processors |
| Pack Weight Netto (kg) | 1.75 kg |
| USB 2.0 | 2 (USB 2.0 (type A)) |
| USB 3.2 Gen 1 | 4 (USB 3.2 (type A)) |
| USB 3.2 Gen 2 | 1 (USB 3.2 (type A)) |
| USB 3.2 Gen 2 x2 | 1 (USB 3.2 (type C)) |
| Video Chipset | Intel HD Graphics |
| Video Controller Integrated | yes |
| Vrsta memorije | DDR4 SDRAM |
| Warranty Products Returnable | Yes |
| Warranty Term (month) | 12 month(s) |
| Warranty validation Criteria | Serial Number |
| Package Type | Retail |
| Pack Weight Brutto (kg) | 1.75 kg |
| Audio Interface | 3 (3.5-mm minijack) |
| Form Factor | ATX |
| Audio Output Mode | 7.1 Channel Surround |
| BIOS Features | Gigabyte Q-Flash WfM 2.0 Support PnP 1.0a Support UEFI SMBIOS 2.7 Support DMI 2.7 Support ACPI 5.0 Support 256 Mb Flash ROM |
| BIOS Type | AMI |
| Box Weight Brutto (kg) | 1.75 kg |
| Chipset | Intel Z790 |
| Compliant Audio Standards | High Definition Audio |
| CPU Maximum Quantity Supports | 1 |
| CPU podnožje | Socket 1700 |
| Data Link Protocol Supports | Gigabit Ethernet/Fast Ethernet/Ethernet 2.5 Gbps |
| Device Location | Integrated |
| HDMI 2.0 | 1 (HDMI (Type A)) |
| Memory Speed | 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2800MHz(PC4-22400) 2933MHz(PC4-23400) 3000MHz(PC4-24000) 3200MHz(PC4-25600) |
| Height (mm) | 244 mm |
| Included Accessories | Quick Start Guide |
| Integrated | Storage Controller:Supports: Level 0, Level 1, Level 10, Level 5PCI Express 4.0 x4 (3 x M.2 (Key M))Storage Controller:Supports: Level 0, Level 1, Level 10, Level 5SATA III-600 (6) |
| LAN | 1 (RJ-45) |
| LAN Integrated | yes |
| Mainboard Features | Fan Speed ControlAMD CrossFire technologyRGB LED |
| Maximum Installable System Memory Storage Capacity | 128 GB |
| Memory Features | Two DDR Channels Unbuffered Dual Rank Single Rank XMP |
| Memory Form Factor | DIMM 288-pin |
| Memory Slot Total Quantity | 4 |
| Width (mm) | 305 mm |
